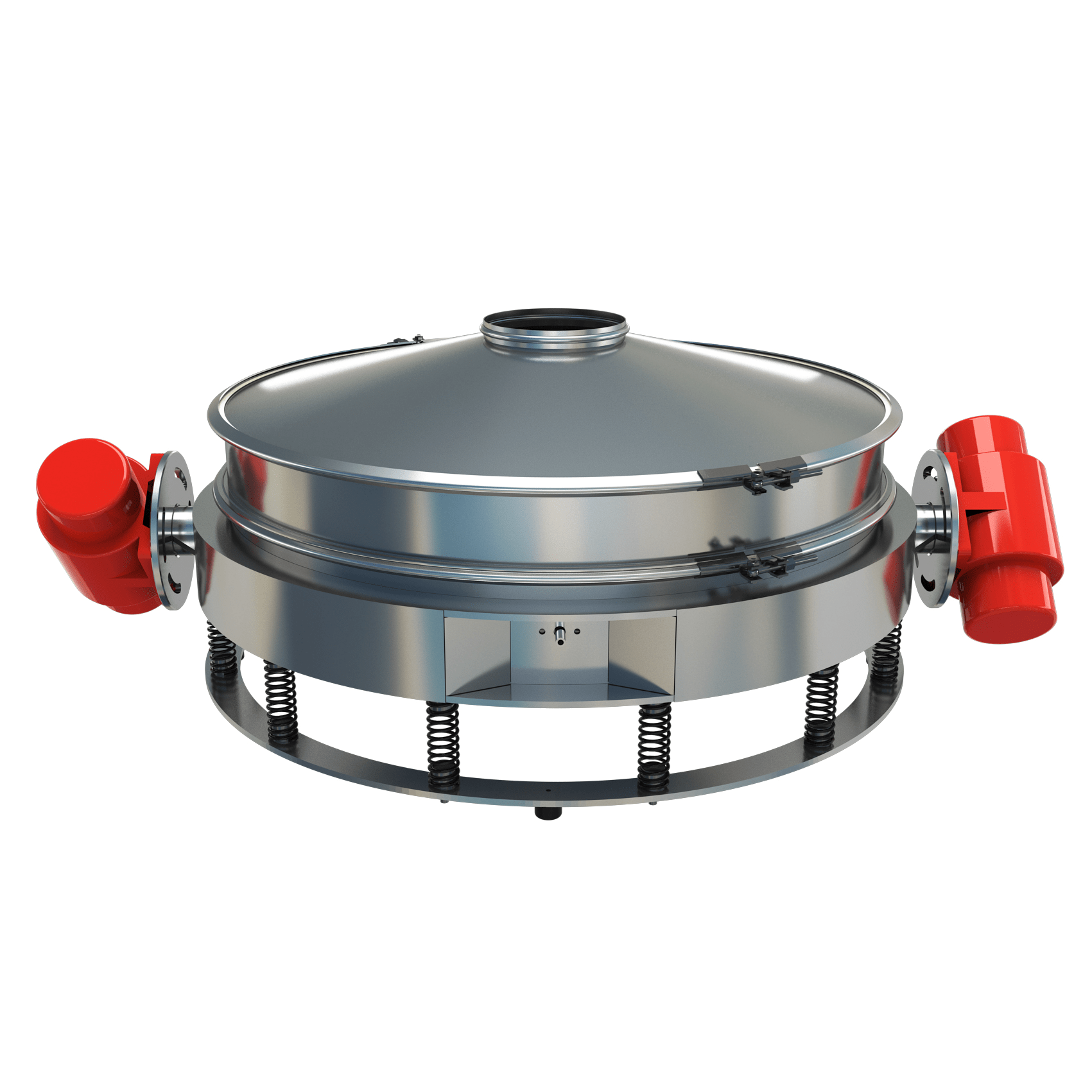

Round Vibrating Screen
The round vibrating screen is used for the separation, classification, scalping, dedusting and selection of powders and liquids.

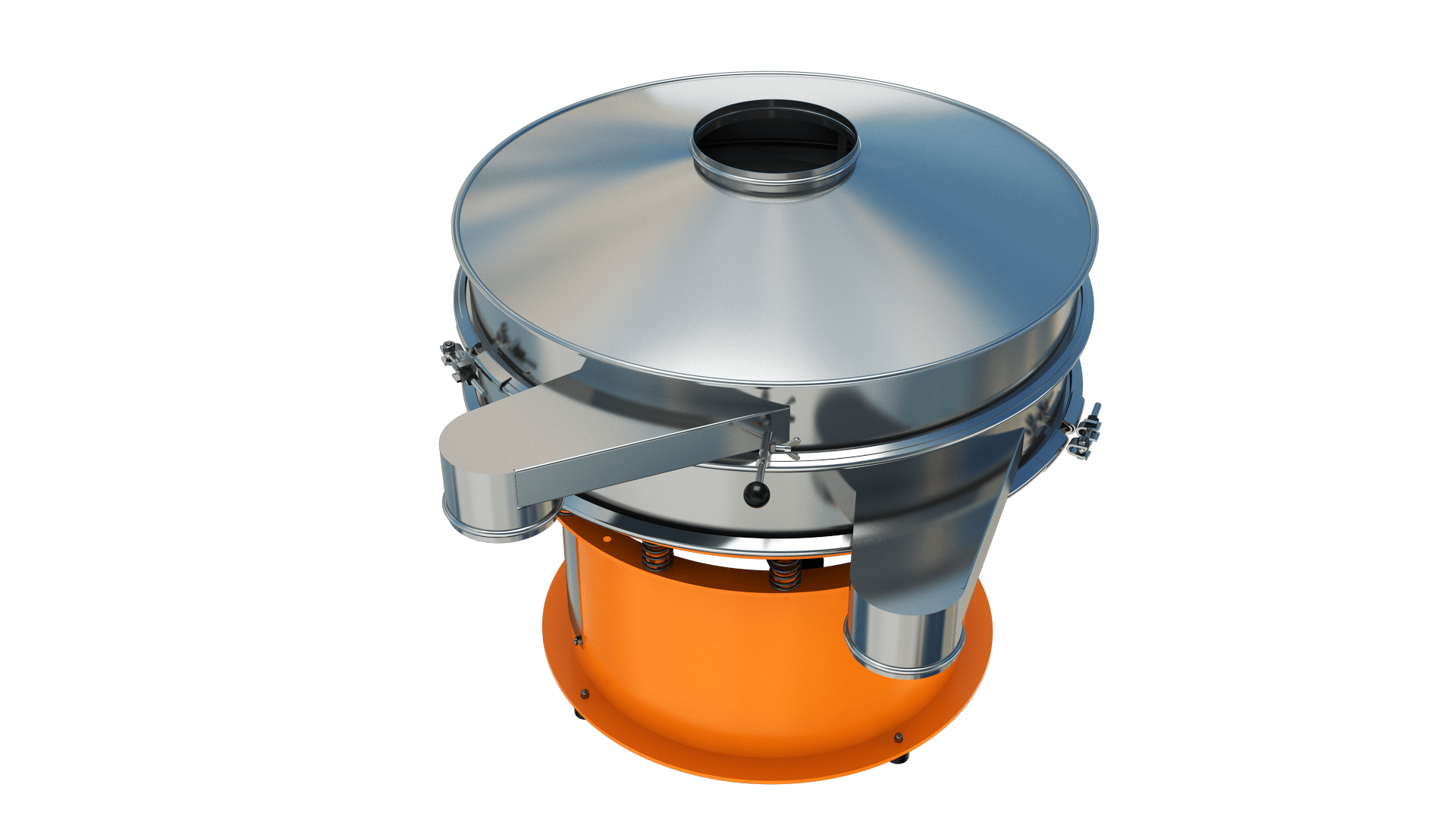

Ultrasonic Vibro Sifter
Product Feature
- Increase your sieving capacity by up to tenfold by allowing powders to pass through screens more quickly.
- Increase mesh durability by reducing screen overload and mesh cleaning frequency.
- Sieve with finer meshes (as low as 20m) for a higher quality final product.
- Remove mesh damage from mechanical deblinding systems.
Product Description
The ultrasonic vibrating screen principle is based on the addition of an ultrasonic energy transform device to the screen surface of a 3-D vibrating separator and filter. This device can superpose ultra high frequency vibrational energy on the screen surface, allowing it to stay clear of the net and achieve the ideal screen situation. Ultrasonic vibrating screens are typically used to screen superfine powder that a standard vibrating screen cannot reach.
Tumbler Screening Machines
Product Feature
- Each machine can perform up to seven separations at the same time.
- Low requirements for acceleration and maintenance, and no product degradation
- Rubber and plastic materials that are dustproof, CE compliant, and FDA approved
- The intermediate rings and screen frame are made of stainless steel 1.4301.
Product Description
Tumbler sieves are a type of evolution from artificial screens. Circular motion and tossing (upward parabolic movement) are fully embodied. To change the amplitude of circular motion and toss, adjust the Radial and Tangential angles. The motion of the tumbler sieve is a double pendulum movement caused by an ordinary vertical motor driving an eccentric wheel. By adjusting the radial and tangential angles, the material produces a regular gradually grounding parabolic motion.
Compact Sieve
Product Feature
Good screening efficiency, extremely fast fine particle centre discharge, and adjustable retention time for oversize particles.
Each machine can process up to three fractions at the same time.
High acceleration; can also be used for solid-liquid separation and wet products.
The screen frames are completely dust and waterproof due to U-shaped EPDM or Silicone gaskets.
Optimal vibrating spring setup, minimal vibration transfer
Product Description
Recommended for solids and liquids control and safety sieving. It is especially useful in confined spaces where material reception and sieved product unloading are close together. It allows for a large product volume as well as a single sieving level. They are frequently installed at the discharge chutes, grinding mills, mixers, and so on. The inlet feed and product outlets are located in the centre of the sieve shaker, which functions as a strainer.

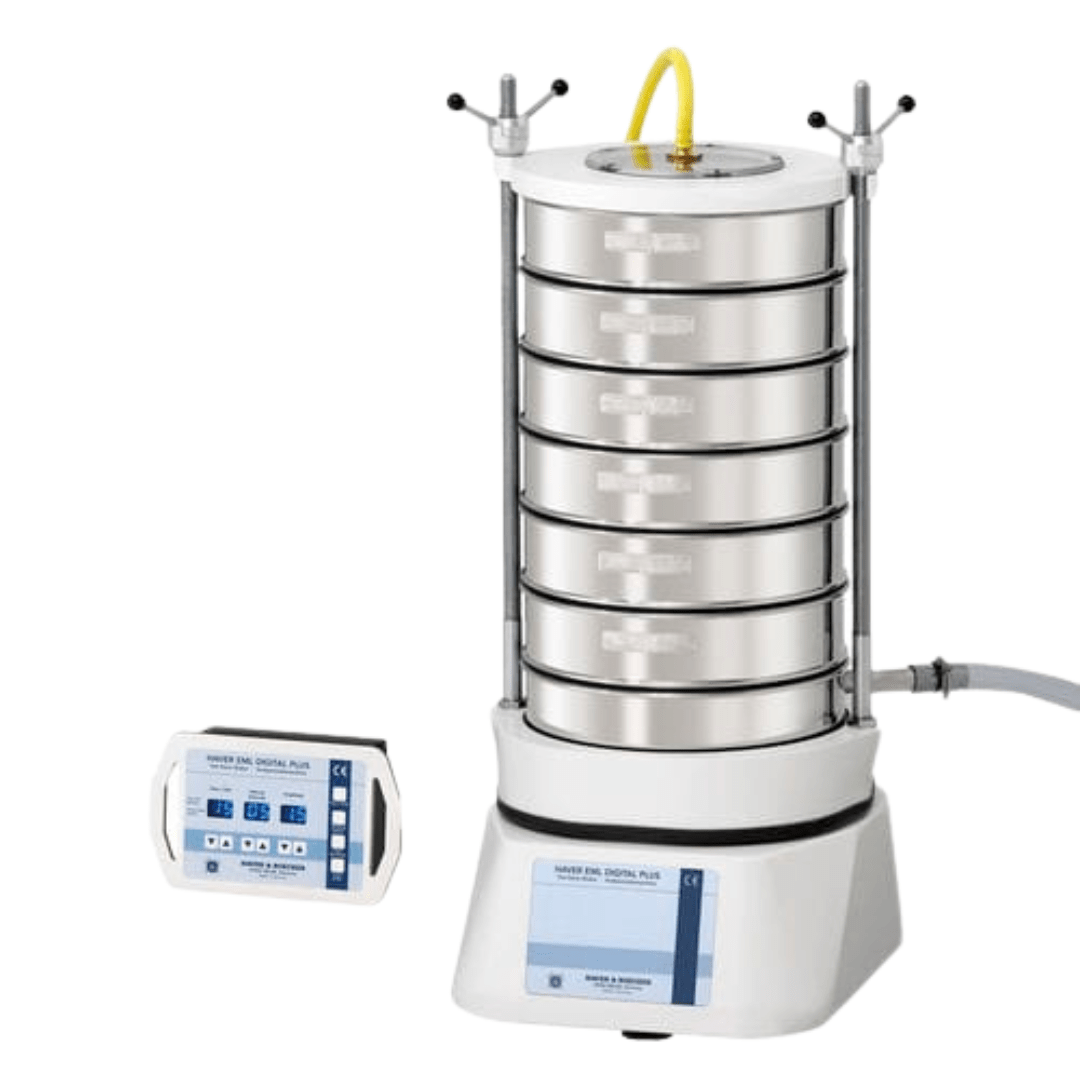

Laboratory Test Siever
Product Feature
- It is suitable for both dry and wet sieving.
- Even with short sieving times, the separation efficiency is excellent.
- 3-D throwing motion that makes the best use of the open sieve area and allows the sample to move evenly across the entire sieving surface.
- Sieve stacking up to 450 mm tall
- All process parameters can be freely adjusted (time, amplitude)
- Simple to use, ergonomic design
Product Description
The NV-II 200 series lab sieve shakers are used in research and development, quality control of raw materials, interim and finished products, and production monitoring. The controllable electromagnetic drive allows for optimal product adaptation. Lab Test Sieve Shaker with an electromagnetic drive that generates a 3D throwing motion that distributes the product to be sieved evenly across the entire sieving surface. The benefits include high stress capacity, extremely smooth operation, and quick sieving times with high separation efficiency.
